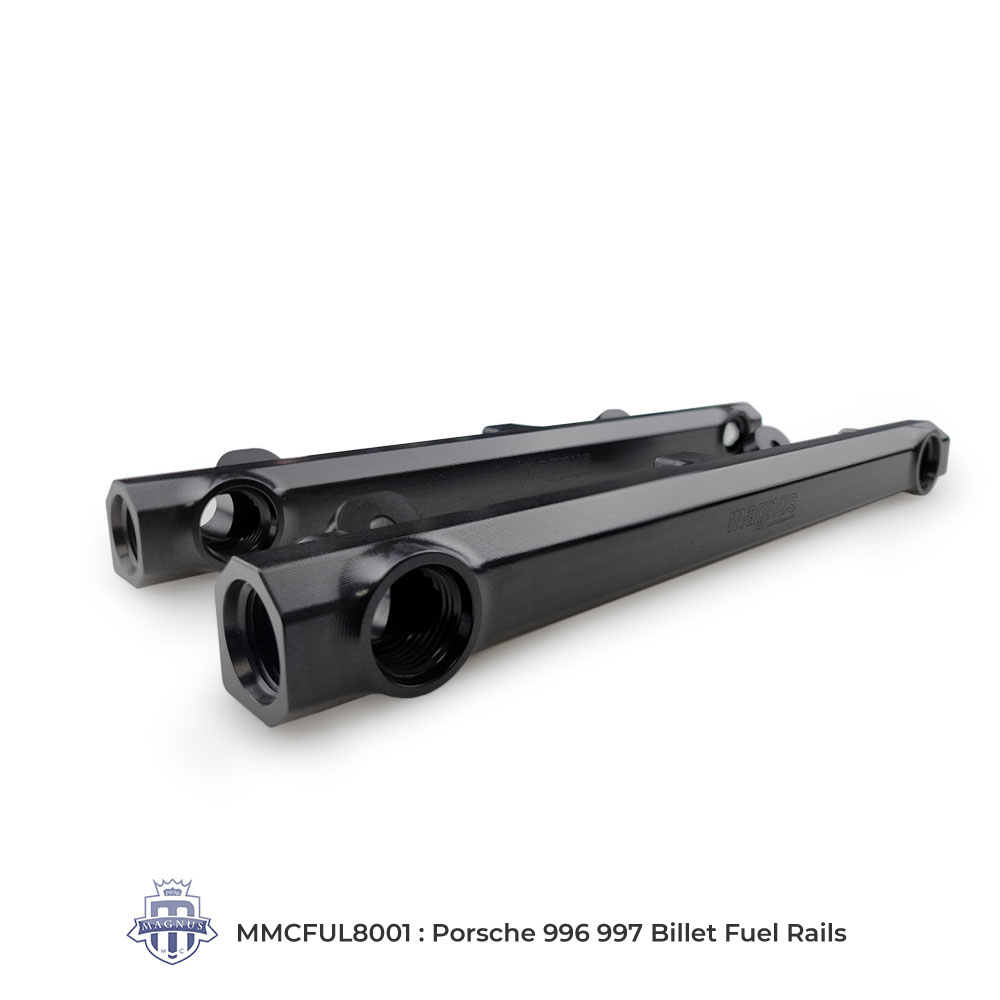

Magnus Porsche 996/997 Billet Fuel Rail



All billet construction 3-D CAD designed in house at Magnus and machined here from T-6061 Aluminum. Magnus Porsche Fuel rails are the answer to the problem of how do I install larger fuel lines on my Porsche engine. We designed these to work with our Alcohol compatible fuel system but they work well with any fuel.

Because the Porsche fuel system consists of many right angles that can impede flow, in order to inhibit the possibility of decreased fuel system performance, Magnus always provided the possibility of using -8 ORB fuel lines. Over sizing the fuel line usually overcomes the shortcomings that many users make when designing their fuel system. Perfect for High horsepower builds

-8 ORB fittings are available on both ends and the part comes hard black anodized to withstand Methanol and the most corrosive of fuels.


  • CAD Designed and 3D CNC machined
  • Billet Aluminium Construction
  • Hard Anodized
  • -8 ORB fittings
  • Perfect for High horsepower fuel systems


  • Porsche 996/997

Part # MMCFUL8001

Additional information

Weight 5 lbs
Dimensions 5 × 5 × 5 in
